Product Description
Die-casting aluminum body, CNC precision machining, ultra-light, ultra-slim and strong, achieving a seamless stitching effect.
Die-casting aluminum body, CNC precision machining, ultra-light, ultra-slim and strong, achieving a seamless stitching effect.

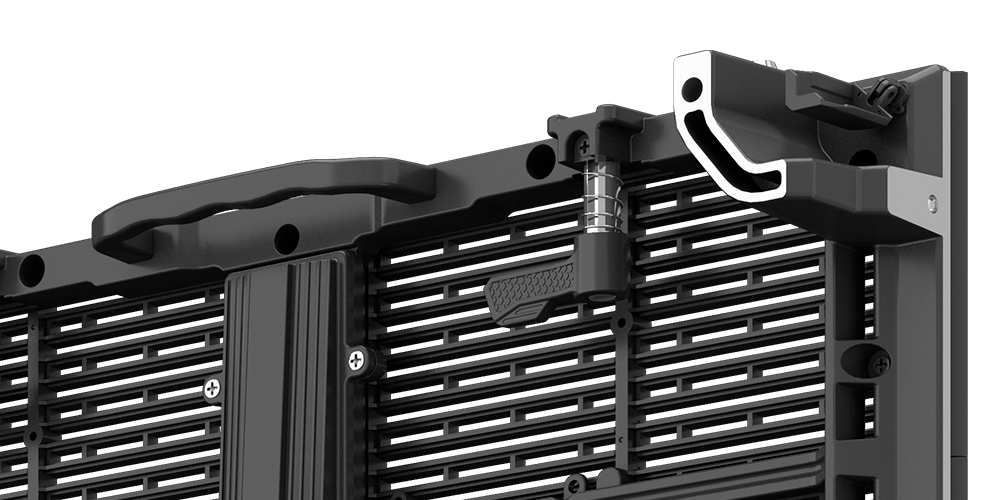

Simple structure of body, has interlocking feature, can be quickly assembled and disassembled.
Stacking&hanging ways, personalized combination of panels, suitable for a variety of outdoor installation environment.

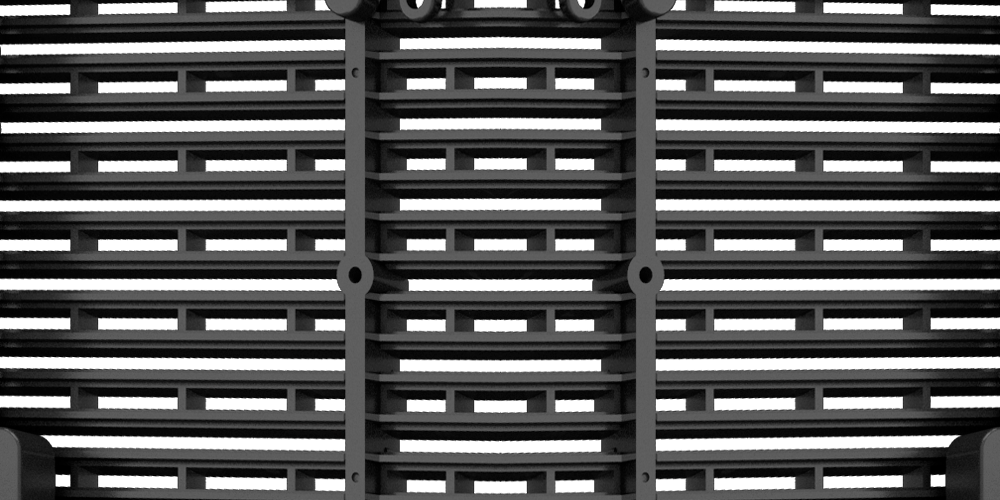

≥35% transparency rate, reducing wind resistance, cool by convection, energy saving and environmental protection, more secure.

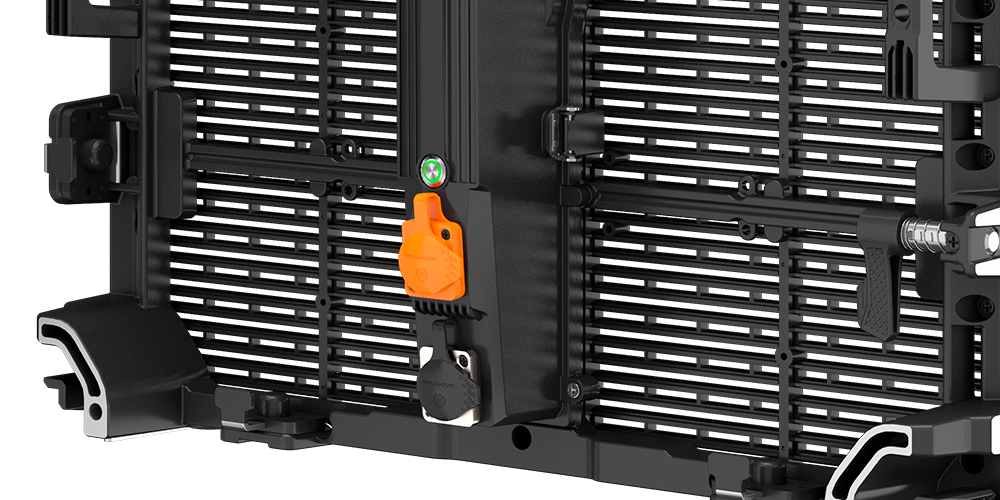

Front&rear maintenance design, using quick release for module, reducing 50% labor costs.
Using protective potting package for module, IP65, and 24/7 work.
Model No. |
H3.91-7.81 | |
|---|---|---|
Pixel Pitch (mm) |
3.91 - 7.81 | |
Pixel Density/ m² |
32768 | |
| Brightness (cd/ m²) | ≥ 4500nit | |
| Ingress Protection | Outdoor, IP65 | |
| Power Consumption (Max/Avg.) | 800/280W/m² | |
Transparency |
35% | |
Module Size |
500 * 125 * 13 mm | |
LED Type |
SMD | |
Viewing Angle |
140° / 140° | |
| Processing Depth | 14bit | |
Date Refresh Rate (Hz) |
3840Hz | |
Weight (Kg/ m²) |
≈6kg/tile (13.23 lb/tile) | ≈9.5kg/tile(20.94 lb/tile) |

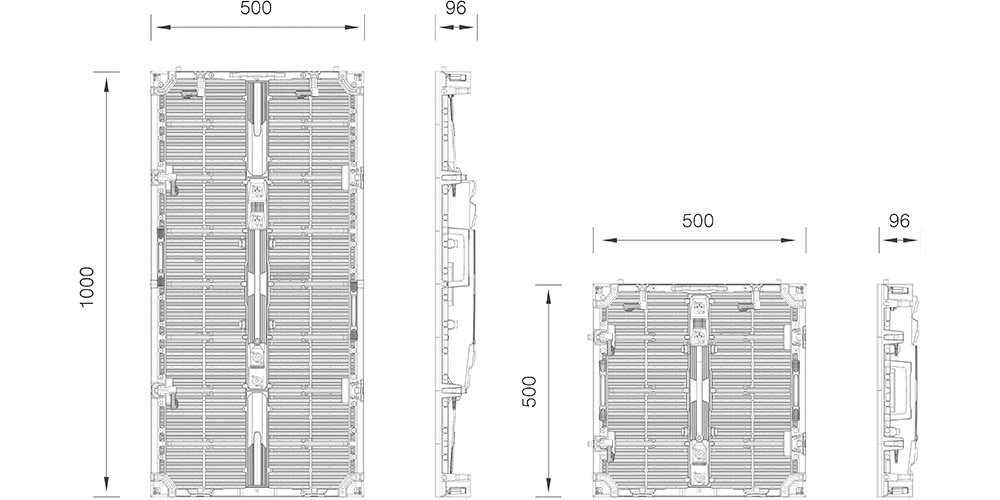

Panel Size (mm) |
500*500*96mm (19.69*19.69*3.78in) | 500*1000*96mm (19.69*39.37*3.78in) |
